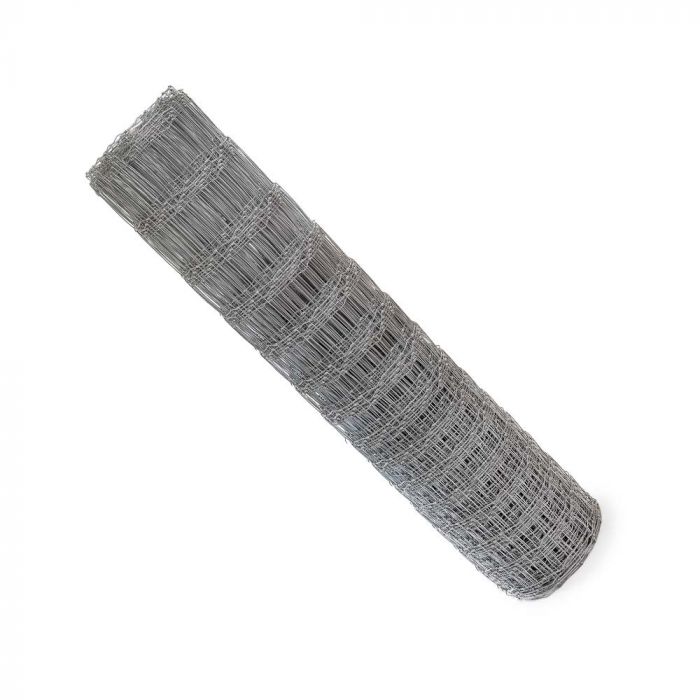

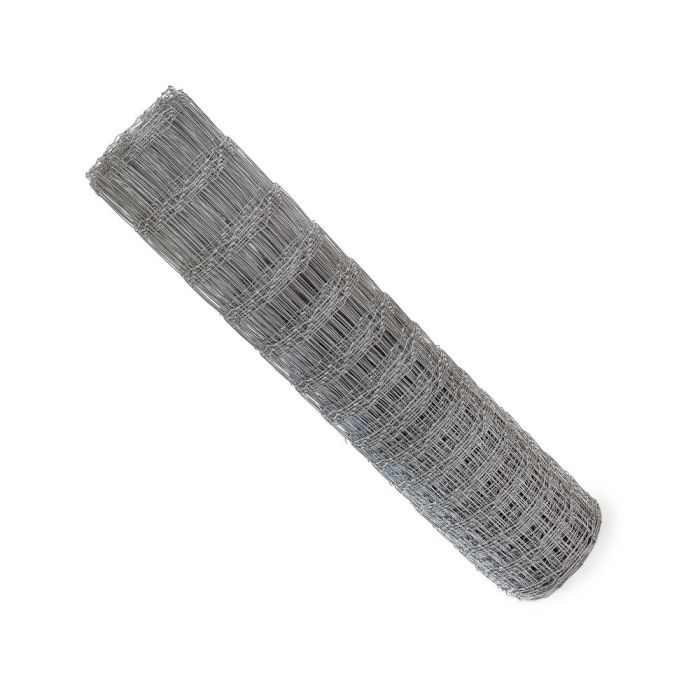

Otter Netting RL23/240/5 C5 (50m)

Technical specifications; specifically designed to exclude otters and Highways Agency approved with a graded mesh size as per detailed images. Flexible construction allows it to be easily installed underground with an under lap. All wires exceed European Standards for tensile strength and galvanising providing reliability and longevity.

Roll length: 50m
No. of line wires: 23
Overall Height: 2400mm
Distance between stay wires: 50mm
Top & bottom line wire specification: 2mm dia - 1100-1250 N/mm2
Intermediate line wire specification: 2mm dia - 1100-1250 N/mm2
Vertical stay wire specification: 2mm dia - 695-850 N/mm2
Average Weight per 50 Metre Roll (kg): 100
Material Composition Heavily galvanised steel wire


To Be used in conjunction with the Caudon Angled Top Return Bracket.
